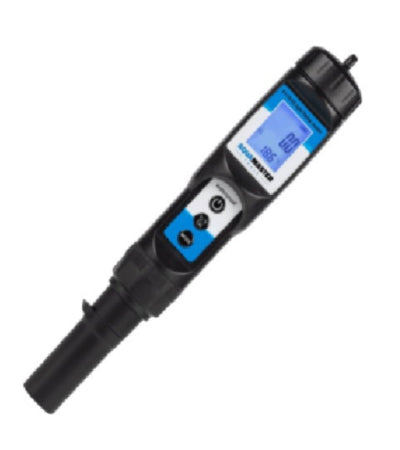

Aqua Master P1110 Combo Pen

This Digital Combo Pen P110 Pro is a versatile and easy-to-use device designed to measure pH, EC (Electrical Conductivity), and Temperature. Below is an overview of the key features, technical specifications, and usage instructions:

Key Features:

• All-in-one measurement: Measures pH, EC, and temperature with a single tool.
• Fully calibrated: Ready to use out of the box, no need for extra setup.
• No liquid storage required: The electrode is designed for dry storage, making it easy to maintain.
• Durable and long-lasting: Waterproof and robust housing with a replaceable electrode for longevity.
• EC / CF display options: Offers flexibility in reading electrical conductivity.
• Automatic temperature compensation: Adjusts readings based on temperature for accurate results.
• Battery and power features: Powered by 3 x AG-13 button cell batteries (included) and includes auto power-off after 8 minutes.

Technical Specifications:

• Measurement Range:

  • pH: 0.1 ~ 14.0 pH
  • EC: 0.0 ~ 19.9 mS/cm
  • Temperature: 0°C ~ 50°C (32°F ~ 122°F)

• Resolution:

  • pH: ± 0.1 pH
  • EC: 0.1 mS/cm
  • Temperature: 0.1°C (1.0°F)

• Accuracy:

  • pH: ± 0.1 pH
  • EC: ± 2% F.S.
  • Temperature: ± 0.5°C (32°F)

• Calibration:

  • pH: 2-point auto calibration (4.0 & 7.0 pH)
  • EC: 1-point auto calibration at 1.4 EC

• Additional Features:

  • Battery indicator for monitoring charge levels.
  • Calibration indicator to show correct calibration status.
  • Waterproof (IP67): Safe to use in wet conditions.
  • Auto power-off after 8 minutes of inactivity.

Kit Contents:

• 1 x Digital Combo Pen P110 Pro
• 1 x User Manual (in multiple languages: NL, EN, DE)
• 3 x 1.5 Volt AG-13 button cell batteries

How to Use:

1. Prepare the Pen:

   • Remove the protective cover.
   • Gently clean the electrode with distilled water and dry it off.

2. Turn On:

   • Press the On/Off button to start the meter.

3. Take Measurements:

   • Insert the meter upright into the solution up to the edge and stir gently.
   • Wait a few seconds for the reading to stabilize.

4. Adjust Settings:

   • Press the C/F button to switch between Celsius and Fahrenheit.
   • Press the MODE button to switch between pH and EC.

5. After Use:

   • Rinse the electrode with water.
   • Turn off the meter by pressing the On/Off button.

Additional Information:

• Dimensions: 220 x 40 x 40 mm
• Weight: 102 grams
• Waterproof Rating: IP67 (can withstand immersion in water up to 1 meter depth for up to 30 minutes).

This meter is designed for anyone needing accurate pH, EC, and temperature readings in a simple, durable, and reliable package, ideal for a variety of applications like gardening, hydroponics, and laboratory work.
